Category: hou-general

Archived post by mestela

opnode_sum.py

“` This script will inspect all installed operators in houdini and create a table summarizing them.
hython opnode_sum.py > nodeinfo.json
The -p option will also output the parameter information. The –briefparms option will output name/label parameter information. “`

Archived post by paqwak

@tokyomegaplex ?

a bit of this and that :

Tested with that FBX that has embedded textures … at some point as folder “`Gas Station.fbm“` was created but I don’t by who, probably the fbx_archive_import … after that you can use a “attribfromparm” that helps to create a dict from nodes parameters, and retrieve the path to every texture plug as basecolor_texture.

It’s possible you don’t even need a loop for this, but it’s easier to build and check strings that way.

Attachments in this post:
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20240212/23/24/image.png
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20240212/23/24/FBX_Texture_To_Cd.hiplc
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20240212/23/24/Gas_Station.FBX

Archived post by sniperjake945

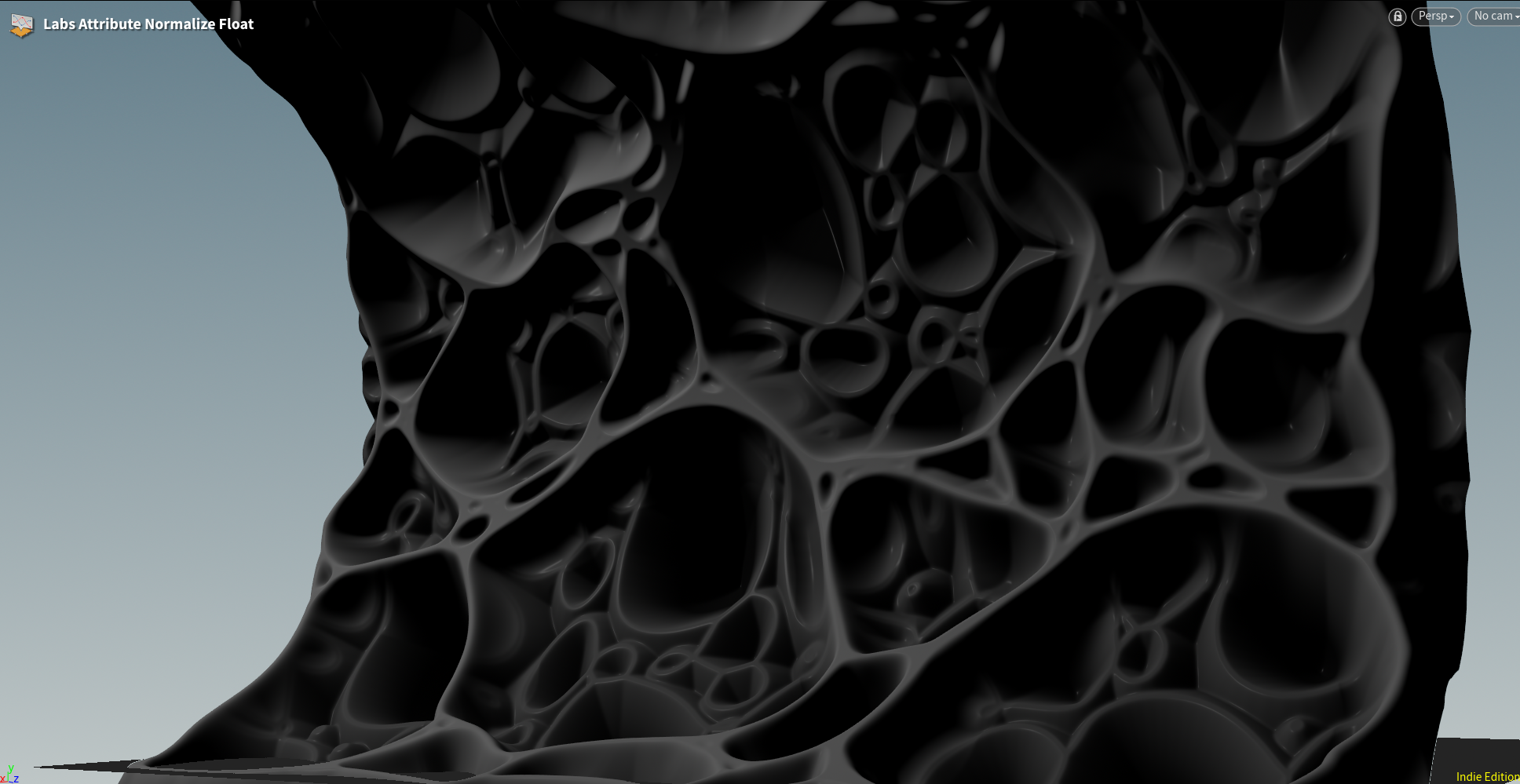

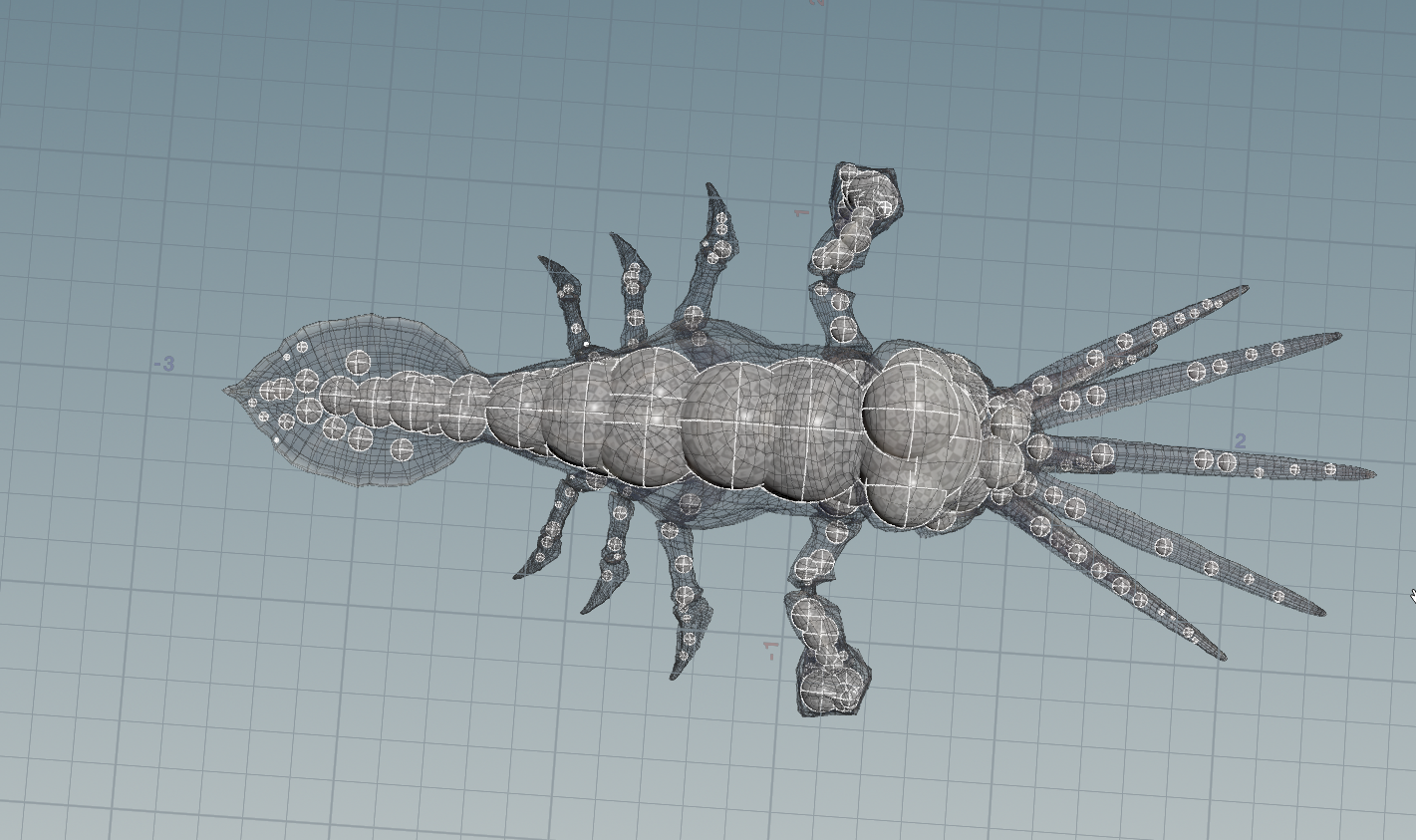

if you want to sample points at the medial axis you could look at something like `coverage axis ++` which uses some really simple metrics to sample points at the medial axis without needing to do any kind of fusing/remeshing or advection.
But i will say the medial axis is inherently not as useful as the straight skeleton, cuz in 3d for many shapes its a surface and not a curve…

arxiv.org/abs/2401.12946 its a neat paper, a totally different approach for finding these surfaces. @mattiasmalmer @_white_dog_

if you want to get topology out of this and not just a point cloud it definitely takes more effort, and no one likes using effort

Attachments in this post:
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20243212/22/24/image.png
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20243212/22/24/coverage_axis_plus_plus_JR.hiplc

Archived post by sniperjake945

if you want to sample points at the medial axis you could look at something like `coverage axis ++` which uses some really simple metrics to sample points at the medial axis without needing to do any kind of fusing/remeshing or advection.
But i will say the medial axis is inherently not as useful as the straight skeleton, cuz in 3d for many shapes its a surface and not a curve…

arxiv.org/abs/2401.12946 its a neat paper, a totally different approach for finding these surfaces. @mattiasmalmer @_white_dog_

if you want to get topology out of this and not just a point cloud it definitely takes more effort, and no one likes using effort

Attachments in this post:
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20244312/22/24/image.png
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20244312/22/24/coverage_axis_plus_plus_JR.hiplc

Archived post by fabriciochamon

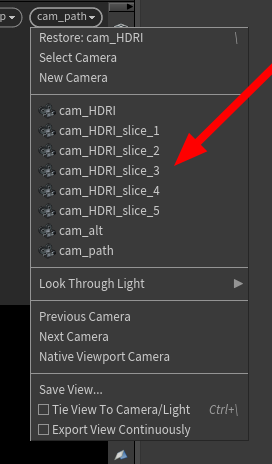

any tricks to choose which cameras to hide from here ?

of course the info is clear as hell on the docs and I can’t read for some reason 🤦‍♂️ `To prevent cameras from appearing in the viewport menu, add a spare parameter named viewmenu to the camera you want to hide and change the value to 0`

Attachments in this post:
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20244411/19/24/image.png
