Category: hou-programming

Archived post by SniperJake945

it was the mouse yee. Okay so basically the procedure is this:
starting from some triangle`T`, at some point `u` (in the triangle not on an edge or at one of the vertices of the triangle, those are special cases), trace a vector `v` over the surface of your mesh.
first rotate `u` into 2d using the dihedral between `T`’s normal and one of your coordinate axes, do the same for `v`.
Convert the 2d `u` into barycentric coordinates. convert the 2d `u + v` into barycentric coordinates.
using some barycentric fuckery (math.stackexchange.com/questions/2382016/determine-if-a-line-segment-passes-through-a-triangle/2385307#2385307) determine which edge the line `u, u + v` crosses.
keep in mind that if `u + v` is somewhere in your triangle you should break, because that means your tracing position is inside this triangle `T`.
convert back to 2d from barycentric. find the angle of intersection `theta`.
grab the intersected edge.
subtract the distance traveled from the length of the original vector and store it as like some float named `length_left`
store the hit position as a 1d value `g` along the hit edge for efficiency.
Flip over this edge.
rotate this edge into 2d space of the new triangle.
find the new `u` by scaling this rotated edge by `g`
then rotate this edge, from `u` to equal `180 – theta`, and scale it to be equal to `length left`.
repeat the above intersection process but like omit the edge that you just crossed from the test.
Continue until you’ve traced the full length of the initial vector.
Nice.

Caveats:
if you hit a vertex of a triangle you need to follow the keenan crane paper, which basically gives you a guide for figuring out which triangle u want to start tracing from, given the previous trace vector
if your vector is perfectly parallel with an edge, you might run into numerical issues and will have to have a catch for that.
Starting your trace from anywhere on the edge of the triangle is annoying to deal with if you dont know which triangle your current trace vector is pointing into.
I havent proof read any of this, so if it’s incoherent, sorry.

its a lot of work to do this efficiently, but once you get it working you can do a lot of really crazy things

i have faith that any and all of you can do this too!!!! i believe in you!!!!!!!!!

Archived post by Thomas Helzle

In case anybody is interested: I adapted the adjustPrimLength from groom.h to work in the other direction: “`void adjustPrimLengthInv(const int geo, prim; const float currentlength, targetlength) { float diff = targetlength – currentlength; int points[] = primpoints(geo, prim); if(diff < 0) { vector lastpos = 0; float length = 0; int numpt = len(points); for(int idx = numpt-1; idx >= 0; idx–) { int pt = points[idx]; vector pos = point(geo, “P”, pt); if(idx < numpt-1) { float seglength = distance(pos, lastpos); if(length+seglength > targetlength) { float frac = (targetlength-length)/seglength;
vector newpos = lerp(lastpos, pos, frac); setpointattrib(0, ‘P’, pt, newpos, ‘set’); for(int i=idx-1; i>=0; i–) { removepoint(geo, points[i]); }
break; }
length += seglength; }
lastpos = pos; } } }“`

So between the normal version and this one I can scale polylines smoothly from both sides.

Oh and I removed the extension part, I never want the lines to become longer. So below is the modified and simplified standard version:

“`void adjustPrimLength(const int geo, prim; const float currentlength, targetlength) { float diff = targetlength – currentlength; int points[] = primpoints(geo, prim); if(diff < 0) { vector lastpos = 0; float length = 0; foreach(int idx; int pt; points) { vector pos = point(geo, "P", pt); if(idx > 0) { float seglength = distance(pos, lastpos);
if(length+seglength > targetlength) { float frac = (targetlength-length)/seglength;
vector newpos = lerp(lastpos, pos, frac);
int ptnum = addpoint(geo, newpos);
for(int i=idx; i

Just put it in a primitive wrangle, grab your currentlength with: `float currentlength = primintrinsic(0, ‘measuredperimeter’, @primnum);` and cut away… 🙂

Oh and this is in actual lengths, so if you want to cut away half your line, targetlength would be currentlength * 0.5…

I love doing all this in a wrangle since it’s more flexible than carve

Archived post by matte

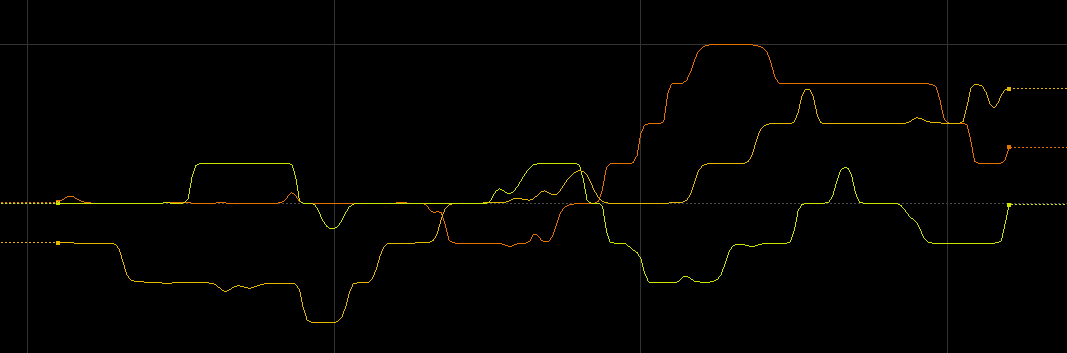

Just a random thing if anyone finds it useful – here’s some vex to quantise a value to steps, with variable smoothness: “` float smoothstep(float n; float x) { if (n == 0) return x; return 1.0/(1.0+pow(1.0/x-1.0,n) ); }
vector smoothstep(float n; vector x) { if (n == 0) return x; vector un = {1,1,1}; return un/(un+pow(un/x-un,n) ); }
// step: levels of quantisation // val: value to quantise // rolloff: smoothness
val *= step; vector fraction = smoothstep(rolloff, frac(val)); val = floor(val) + fraction; val /= step; “`

default houdini smooth() doesn’t work symmetrically

Attachments in this post:
http://fx-td.com/houdiniandchill/wp-content/uploads/discord/20192210/08/19/smoothquant.png

Archived post by matte

@nicholas ralabate afaik it doesn’t make a RAT, so blurring/filtering can be slow

imo image texture access in vex is just slow in general

On a recent project which involved lots of SOPs/VEX texture access I accellerated it substantially by first pre-loading the texture into a 2D volume, then sampling the volume rather than the texture

Archived post by jake rice

@dchow @CoskuTurhan “`Hello Jake, There are two phases to cooking a DOP frame: the network pass and the solve pass. Former takes care of setting parameters and building the sequence of operators that are to act on the objects; the solve pass then actually invokes these operators. The issue is that substepping triggered by the Gas Substep solver is done as part of the solve pass, while the Switch Solver gets its switch value set during the network pass. To perform its solve, Gas Substep DOP basically determines how many substeps to take and calls its sequence of input operators that number of times. So when the Switch Solver is reached, it uses the switch value that was evaluated at the network pass. In other words, the value of that parameter does not get refreshed for each of your substeps.
You can get the behaviour you want by disabling Override with Default and using the data specified in Switch Value Name. This data will have to be modified to account for your frame number logic, which can be done fairly easily with a Script Solver. Note that this works because the parameter value is static (name of the data to use), but the actual data stored gets evaluated every time the node goes to perform its solve. “`
